YIC Crystal Clock Oscillators

SMD - SPXO & RTC 4 Pad - OSC-S21, S22, 22 RTC, S3, S3 RTC

  • OSC-S21  SPXO OscillatorSMD  4PAD  (2.0x1.6mm)  4 ~ 50  MHz  Stability: ±25 ~ ±100ppm  Temp.Range (Standard): -40 ~ 125°C (-10~ 70°C)  Load Cap: 15 pF  Input Voltage: 1.8,2.5,3.3
  • OSC-S22  SPXO OscillatorSMD  4PAD  (2.5x2.0mm)  2 ~ 50  MHz  Stablity: ±25 ~ ±100ppm  Temp. Range (Standard): -40 ~ 125°C (-10~ 70°C)  Load Cap: 15 pF  Input Voltage: 1.8,2.5,3.3
  • OSC-S22 RTC  RTC OscillatorSMD 4PAD  (2.5x2.0mm)  32.768  KHz  Stability: ±20 ~ ±50ppm  Temp. Range (Standard): -40 ~ 125°C (-10~ 70°C)  Load Cap: 15 pF  Input Voltage: 1.8,2.5,3.3
  • OSC-S3  SPXO OscillatorSMD 4PAD  (3.2x2.5mm)  2 ~ 50  MHz  Stability: ±25 ~ ±100ppm  Temp. Range (Standard): -40 ~ 125°C (-10~ 70°C)  Load Cap: 15 pF  Input Voltage: 1.8,2.5,3.3
  • OSC-S3 RTC  RTC OscillatorSMD 4PAD  (3.2x2.5mm)  32.768  KHz  Stability: ±20 ~ ±50ppm  Temp. Range (Standard): -40 ~ 125°C (-10~ 70°C)  Load Cap: 15 pF  Input Voltage: 1.8,2.5,3.3

SMD - SPXO &RTC 4 PAD - OSC-S5, S5 RTC

  • OSC-S5  SPXO OscillatorSMD 4PAD  (5.0x3.2mm)  0.5 ~ 156  MHz  Stability: ±25 ~ ±100ppm  Temperature Range (Standard): -40 ~ 125°C (-10~ 70°C)  Load Cap: 10~15 pF  Input Voltage: 3.3,5
  • OSC-S5 RTC  RTC OscillatorSMD 4PAD  (5.0x3.2mm)  32.768  KHz  Stability: ±20 ~ ±50ppm  Temperature Range (Standard): -40 ~ 125°C (-10~ 70°C)  Load Cap: 15 pF  Input Voltage: 3.3

SMD - LVDS & LVPECL 6 PAD - OSCLD-S5 & OSCLP-S5

  • OSCLD­-S5  LVDS OscillatorSMD 6PAD  (5.0x3.2mm)  15 ~ 160  MHz  Stability: ±25 ~ ±100ppm    Temp. Range (Standard): -40 ~ 85C (-10~ 70°C)  Input Voltage: 2.5,3.3
  • OSCLP­-S5  LVPECL OscillatorSMD 6PAD  (5.0x3.2mm)  15 ~ 156.25  MHz  Stability: ±25 ~ ±100ppm    Temp. Range (Standard): -40 ~ 85C (-10~ 70°C)  Input Voltage: 2.5,3.3

SMD - SPXO &RTC 4 PAD - OSC-S7, S7 RTC

  • OSC-S7  SPXO OscillatorSMD 4PAD  (7x5mm)  0.5 ~ 156  MHz  Stability: ±25 ~ ±100ppm  Temp. Range (Standard):-40 ~ 125°C (-10~ 70°C)  Load Cap: 10~15 pf  Input Voltage: 3.3,5
  • OSC-S7 RTC  RTC OscillatorSMD 4PAD  (7x5mm)  32.768  KHz  Stability: ±20 ~ ±50ppm  Temp. Range: (Standard): -40 ~ 125°C (-10~ 70°C)  Load Cap: 15 pF  Input Voltage: 3.3

SMD - LVDS & LVPECL 6 PAD - OSCLD-S7 & OSCLP-S7

  • OSCLD-­S7  LVDS OscillatorSMD 6PAD  (7x5mm)  15 ~ 160  MHz  Stability: ±25 ~ ±100ppm    Temperture Range (Standard): -40 ~ 85C (-10~ 70°C)  Load Cap: 2.5,3.3
  • OSCLP-­S7  LVPECL OscillatorSMD 6PAD  (7 x 5mm)  15 ~ 622.08  MHz  Stablity: ±25 ~ ±100ppm   Temp. Range (Standard): -40 ~ 85C (-10~ 70°C)  Load Cap: 2.5,3.3

SMD - REAL TIME CLOCK MODULE

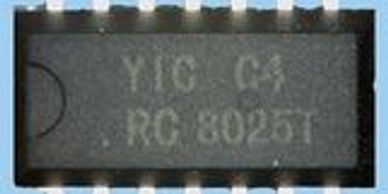

  • RC8025T OscillatorSMD 14PAD  (10.1x5.0mm)  32.768  KHz  Stability: ±0.5ppm MAX  Temp. Range:-40 ~ 125°C  Input Voltage: 2.2 ~ 5V

THROUGH-HOLE - OSC-H (DIP 8) & OSC - F (DIP 14)

  • OSC-H Oscillator DIP8  (12.9X12.9mm)  0.020 ~160  MHz  Stability: ±25 @ ±100ppm  Temp. Range:-40 ~ 125°C  Load Cap: 10 ~ 15 pF  Input Voltage: 3.3,5
  •  OSC-F Oscillator DIP14  (20.4x12.9mm)  0.020 ~160  MHz  Stability: ±25 @ ±100ppm  Temp. Range:-40 ~ 125°C  Load Cap: 10 ~ 15 pF  Input Voltage: 3.3,5

MEMS OscillatorSMD 4PAD - OSCM-S22, S3, S5, S7

  • OSCM­S22  MEMS OscillatorSMD 4PAD  (2.5x2.0mm)  1 ~ 220  MHz  Stability: ±25 ~ ±100ppm  Temp. Range: -10 ~ 70°C  Load Cap: 15 pF  Input Voltage: 1.8,2.5,3.3
  • OSCM­S3  MEMS OscillatorSMD 4PAD  (3.2x2.5mm)  1 ~ 220  MHz  Stability: ±25 ~ ±100ppm  Temp. Range: -10 ~ 70°C  Load Cap: 15 pF  Input Voltage: 1.8,2.5,3.3
  • OSCM­S5  MEMS OscillatorSMD 4PAD  (5.0x3.2mm)  1 ~ 220  MHz  Stability: ±25 ~ ±100ppm  Temp. Range: -10 ~ 70°C  Load Cap: 15 pF  Input Voltage: 1.8,2.5,3.3
  • OSCM­S7  MEMS OscillatorSMD 4PAD  (7.0x5.0mm)  1 ~ 220  MHz  Stability: ±25 ~ ±100ppm  Temp. Range: -10 ~ 70°C  Load Cap: 15 pF  Input Voltage: 1.8,2.5,3.3
